Product Feature:
- Low Resistance/TCR/inductance
- Excellent long-term stability
- High precision current sensing
- High Power capability
- Halogen free and lead free-RoHs compliant

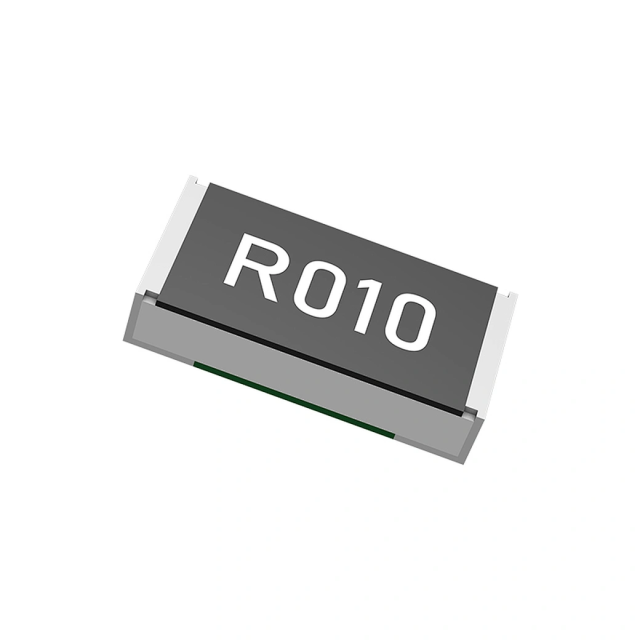

- Thick Film Chip Resistors/ High Precision Metal Film Resistors
Application Areas：
- Precision instruments
- Communication equipment
- Industrial control
- Automotive electronics
- Consumer electronics
- Aerospace and military
- Power management
- Computer hardware
Thick Film Chip Resistors/ High Precision Metal Film Resistors support customize
Support customize, welcome to contact us for more solutions.
| Package |
Power |
Resistance (min) |
Resistance (max) |
Tolerance |
TCR (ppm/℃) |
| 201 |
1/20W, 1/10W, 1/5W |
50 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm, ±100 ppm |
| 402 |
1/16W, 1/8W, 1/4W |
50 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm, ±100 ppm |
| 603 |
1/10W, 1/5W, 2/5W |
50 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm, ±100 ppm |
| 805 |
1/8W, 1/4W, 1/2W, |
39 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm, ±100 ppm, ±150ppm |
| 1206 |
1/4W, 1/2W, 1W |
39 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm, ±100 ppm, ±150ppm |
| 1210 |
1/2W, 1W |
39 mΩ |
10 Ω |
±0.25%~±5% |
±50ppm, ±100 ppm, ±150ppm |
| 2010 |
3/4W, 1.5W |
100 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm |
| 2512 |
1W, 2W, 3W |
100 mΩ |
10 Ω |
±0.5%~±5% |
±50ppm |
