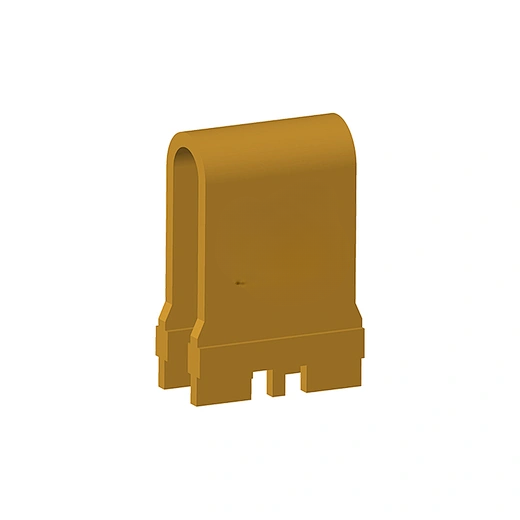

High Precision Shunt Resistor/ SMD Shunt Resistor enable high-accuracy current measurement in automotive, industrial, and renewable energy systems.
Product Parameters：
- Rate Current: 10A~250A
- Rate Voltage: 15mV~100mV
- Pitch Space: 6mm~30mm
- Resistance: 100μΩ~1000μΩ
- Tolerance: ±0.5%~±5%
- TCR: ≤50ppm
Since the voltage sampling point is always at a certain distance from the heating center of the resistor, there is a temperature difference between the voltage sampling point and the heating center of the resistor, so low thermoelectric potential is particularly important.
The shunt has a thermoelectric potential of less than 0.5μV/℃ on copper, and has little effect on the voltage output at the millivolt level. The flat structure of the shunt makes the inductance less than 3nH, and it also performs well at high frequencies.Low thermoelectric potential and low inductance
High Precision Shunt Resistor/ SMD Shunt Resistor
Product Features：
- The product has high precision, strong reliability, high overload capacity, high stability
- Wide temperature range and non-inductive design.
- Complies with Rohs requirements and has passed AEC-Q200 certification.
- High Precision Shunt Resistor/ SMD Shunt Resistor
High Precision Shunt Resistor/ SMD Shunt Resistor support customize
Support customize, welcome to contact us for more solutions.
| Rate Current (A) |
Rate Voltage (mV) |
Pitch Space(mm) |
Resistance (min) |
Resistance (max) |
Tolerance |
TCR (ppm/℃) |
| 10A~250A |
15mV~100mV |
6mm~30mm |
100 μΩ |
1000μΩ |
±0.5%~±5% |
≤50ppm |
